TcaplusDB TDR Table MySQL Protocol Compatibility Interface Get Access Information

1. Background

When using MySQL protocol to access TcaplusDB, it needs to obtain the access address and port in advance.

2. View Method

1. View access information through Tencent Cloud Service

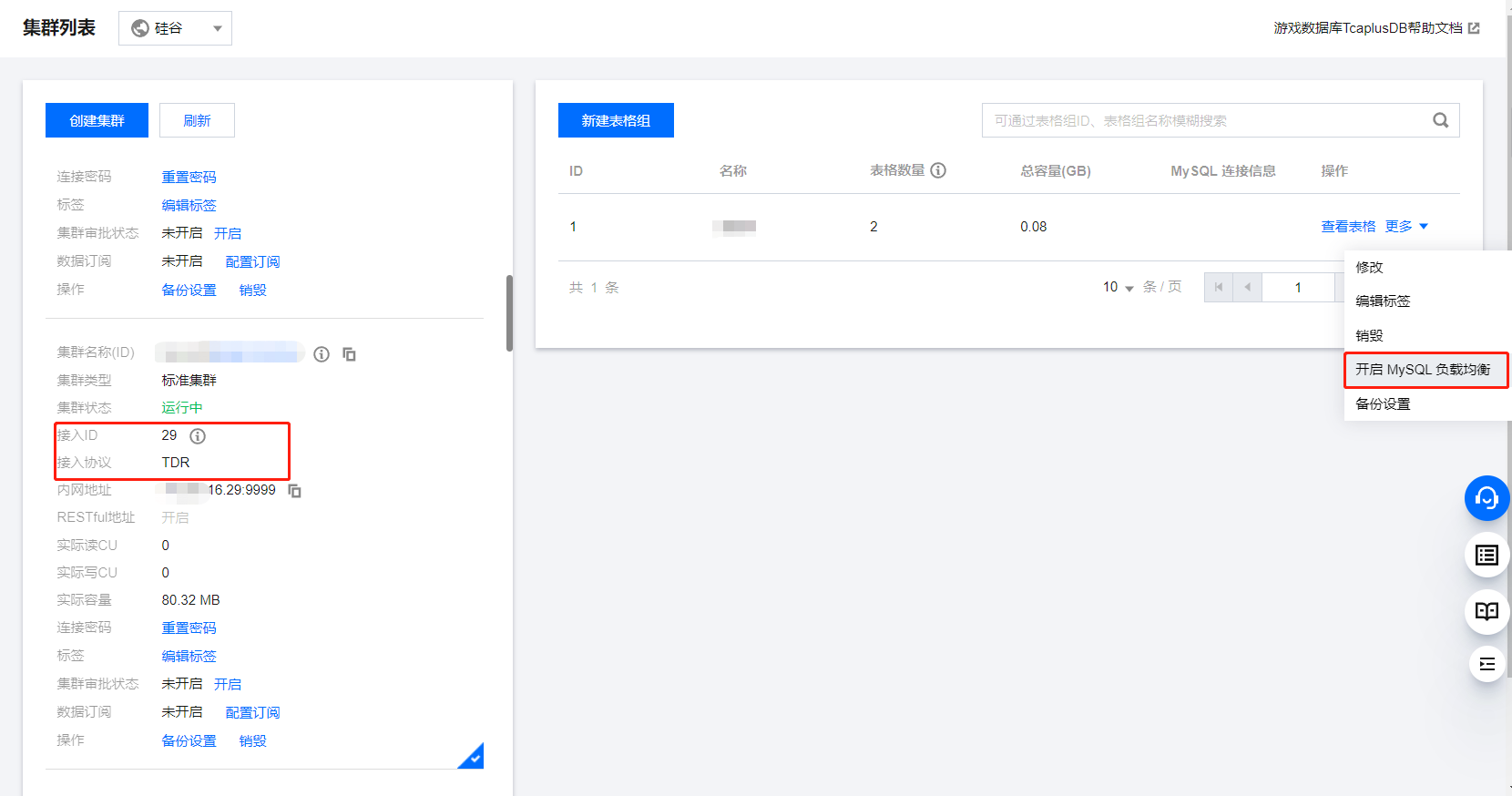

Log in to the Tcaplus DB Tencent Cloud Console page, select the corresponding cluster and table group, and enable MySQL load balancing. You can see the MySQL access information corresponding to the table group on the page.

2. View access information through local deployment or container environment

Since MySQL protocol compatibility feature does not support load balancing in the local deployment or container environment, you can only directly connect to the MySQL port of the Tcaproxy process. Note: This access mode has a single-point problem and no disaster recovery capability.

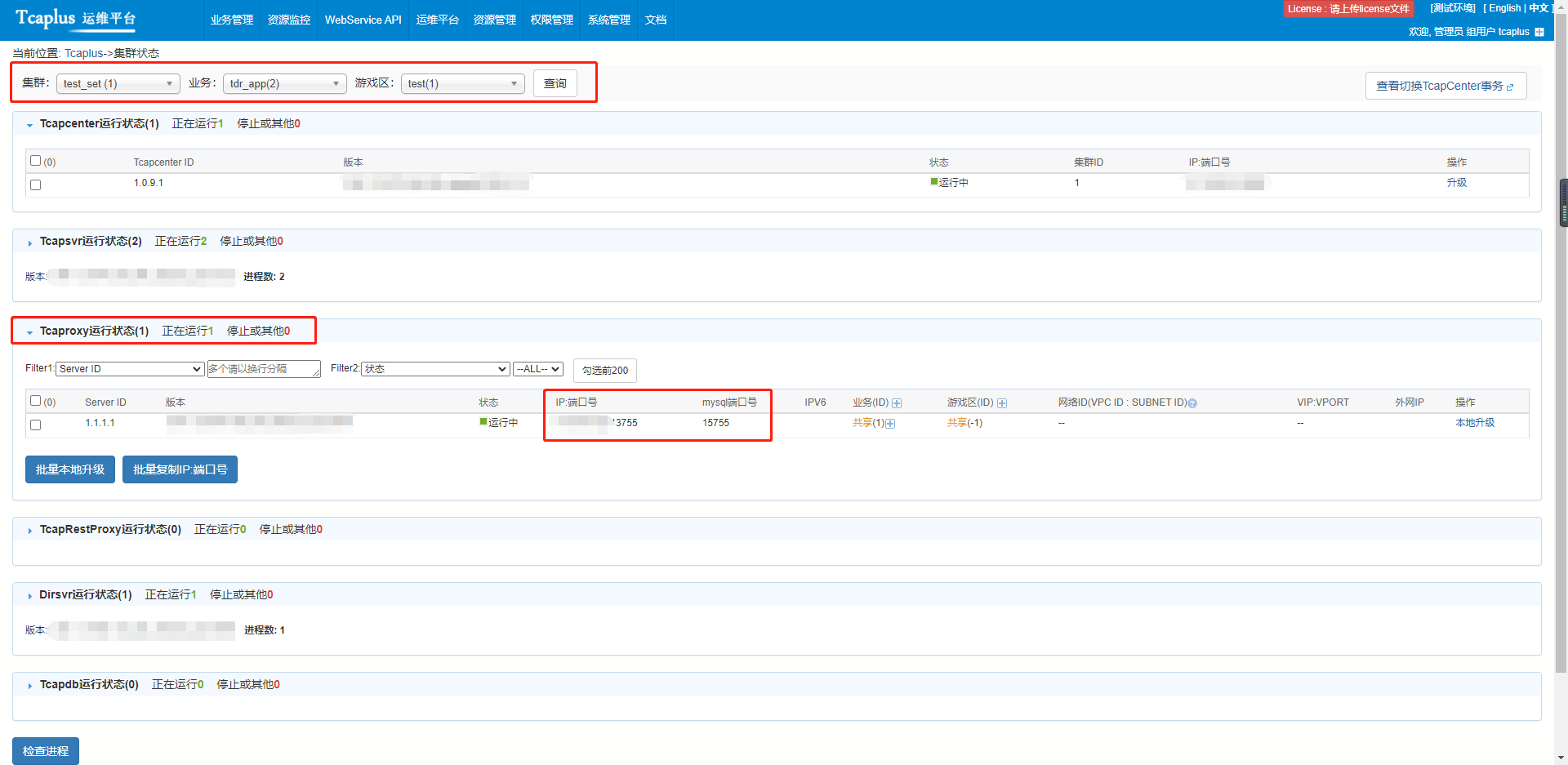

Log in to the TcaplusDB OMS console, enter the "Operation and Maintenance Platform" ->"Cluster Status" page, select the corresponding app and game zone at the top of the page, click the "Query" button, select the IP of any process as the access address in the Tcaproxy process list, and select the MySQL port number of the process as the access port.
